Super Alloy Turbine Blade for Gas Turbine/ Steam Turbine Turbohcarger
Main features: heavy-duty spindle, full closed loop.
Main process: processing blade root and diametral plane.
With high quality and good service, our Boiler Drum, Steam Turbine, Blast Furnace Top Gas Recovery Turbine Unit (TRT) are sold all over the world. The code of conduct of enterprise ethics is the concrete action of enterprise morality and the code of action for the practice of enterprise moral concept. We hope to achieve the unity of corporate goals, department goals and personal goals based on the achievement of company goals. In the new era, we will take leading the industry development and serving the national strategy as our mission.
Performance Chart (Blade Product)
| User | Type of machine set | Blade type | Maximum steam length | Blade root form | Quantity of production |
Russia Power Machinery Co., Ltd. | 25-100MW machine set | Low-pressure moving blade | 665 | T-shaped, fork-shaped | 1560 pieces |
Ukraine Steam Turbine Motor | 50MW machine set | Moving blade, guide blade | 540 | Fork-shaped | 1220pieces |
Russia Energy Co., Ltd. | 25-50MW machine set | Moving blade, guide blade | 540 | T-shaped, fork-shaped | 5866 pieces |
|
|
|
 | ||

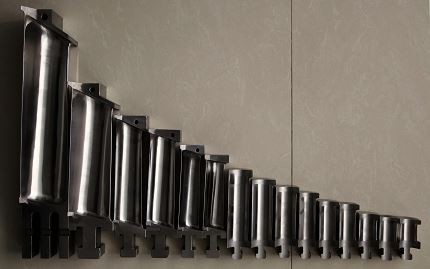

Blade of Russia Power Machinery Co., Ltd. | Blade of Ukraine Steam Turbine Motor | Blade of Russia Energy Co., Ltd. |
User | Type of machine set | Blade type | Maximum steam length | Blade root form | Quantity of production |
Harbin Steam Turbine Limited Liability Company | 300MW machine set | Low-pressure moving blade | 288/515/900 | Firtree-shaped | 5664 pieces |
300MW machine set | Middle/low pressure guide blade | 898 | 2310 pieces | ||
20/150/135MW machine set | Moving blade | 668 | T-shaped, fork-shaped | 12800 pieces |
|
|
|
|
| |
Low-pressure final stage/penultimate stage moving blade of 300MWmachine sets | Low-pressure moving blade assembly of 300MW machine sets which are produced by our compan | Azerbaijan guide bladee preassembly of 300MWmachine sets which are produced by our company |
User | Type of machine set | Blade type | Maximum steam length | Blade root form | Quantity of production |
Dongfang Steam Turbine Co., Ltd. | 1000MW supercriticality machine set | Low-pressure moving blade | 325 | Mushroom-shaped/ pre-twist structure | 1530pieces |
660MW machine set | Middle-pressure moving blade | 320 | Firtree-shaped | 2592pieces | |
300/600MW machine set | Low-pressure moving blade | 633 | Mushroom-shaped/pre -twist structure | 3320pieces |
|
|
|
Low-pressure 5-stage moving blade of 1 million supercriticality machine sets | Pressure-moving blade of 660MW machine sets | Moving blade of combined cycle technology |
|
|
Machining status of final stage moving blade (five-axis machining) | Machining status of guide blade of 135MW machine sets |
|
|
Machining status of final stage moving blade(five-axis machining) | Measuring state of final stage moving blade (three-coordinate measurement) |
User | Type of machine set | Blade type | Maximum steam length | Blade root form | Quantity of production |
Beijing Beizhong Steam Turbine Motor Limited Liability Company | 330MW machine set | Low-pressure moivng/guide blade | 400 | Fork-shaped/pre-tw ist | 2400 pieces |
100/200MW machine set | Complete set of moving/guide blade | 665 | T-shaped, fork-shaped | Twelve sets | |
12/25/50MW machine set | Complete set of moving/guide blade | 399 | T-shaped, fork-shaped | Fourteen sets |
|
|
| Three-coordinate measurement of low-pressure 5-stage moving blade of 330MW machine sets | The low-pressure moving blade assembly of 330MW machine sets which are produced by our company |
User | Type of machine set | Blade type | Maximum steam length | Blade root form | Quantity of | |
Nanjing Steam Turbine Motor (Group) | 50MW machine set | Moving blade | 665 | Fork-shaped, | 15,000 | |
12/25MW machine set | Moving blade | 485 | Forkshped, T-shaped | 38,500 pieces | ||
NANJIN STEAM TURBINE COMPANY | 25MW machine set | Complete set of moving /guide blade | 450 | Six sets | ||
12MW machine set | Complete set of moving | 335 | Twelve sets | |||
|
|
| |
Moving blade of 25MWmachine sets of Nanjing Steam | New energy/guide blade of Nanjing Steam Turbine Motor |
User | Type of machine set | Blade type | Material | Quantity of production |
GE Oil and Gas System | Gas turbine | SM48200 | High temperature alloy | 1355 pieces |
GE Transportation System | CHAR turbine | 41E914138 | High temperature alloy | 3600 pieces |
Beizhong-ALSTOM | 600MW machine set | High and medium-pressure guide blade | 650 pieces |
|
|
|

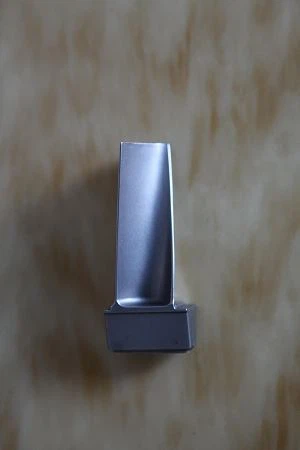

Gas Turbine Blade of GE Oil and Gas System | Turbine blade of GE Transportation System | High-pressure guide blade of 600MW machine sets of Beizhong-ALSTOM |
Main Production Equipment
Type of Equipment | Model | Processing Range | Weight of Workpiece | Quantity | Place of Origin |
X×Y×Z | (Kg) | (Set) | |||
Horizontal Machining Center (Four-axis) | HM630 | 1000×800×850 | 1200 | 1 | Doosan Infracore |
Vertical Machining Center (Five-axis) | XHK800 | 1250 ×400×400 | 1000 | 1 | BMEI Co., Ltd. |
Vertical Machining Center (Five-axis) | HL5001A | Φ800×320 | 1000 | 1 | Harbin Institute of Technology |
High-speed Vertical machining Center (Four-axis) | VF3SS/VF3 | 1016 ×508 ×635 | 800/1600 | 4 | Haas Automation Asia Co., Ltd. |
Vertical Machining Center (Four-axis) | VF4 | 1270×508 ×635 | 1600 | 2 | Haas Automation Asia Co., Ltd. |
Vertical Machining Center (Four-axis) | VM1300A | 1300 x650 x710 | 1500 | 2 | Nantong Dayu |
Vertical Machining Center (Four-axis) | BV100 | 1050 ×510 ×560 | 700 | 2 | BMEI Co., Ltd. |
Vertical Machining Center (Four-axis) | TK5660C | 1250×630×650 | 1500 | 1 | Jiangsu Duoling |
Belt Grinding/Polishing Machine | 2M5430 | Φ200×50 | 50 | 12 | Chongqing Samhida Grinding Machine Co., Ltd. |
|
|
HM630 (Horizontal Machining Center) Main features: heavy-duty spindle, full closed loop. Main process: processing blade root and diametral plane. | XKH800 (Five-axis Vertical Machining Center) Main features: high applicability and high precision. Main process: machining blade profile. |
|
|
HL5001A (Five-Axis Blade Machining Center) Main features: seven degree of freedom, high efficiency. Main process: machining blade profile. | VF3 (Vertical Machining Center) Main features: high speed machining, high precision. Main process: machined blade profile and other. |
|
|
Numerically-controlled Machine Group | |
 |  |
| Belt Grinding and Polishing Machine Group | |
Main Testing Equipment
Type of Equipment | Model | Measuring Range | Quantity | Place of Origin |
X×Y×Z | (Set) | |||
Coordinate Measuring Machine | X08107 | 800×1000×700 | 1 | WENZEL Group |
50x Projector | JT36-500 | 200 ×100×70 | 1 | Guiyang Xintian Optoelectronics |
Tool Measuring Instrument | E238 | Φ280 ×380 | 1 | ELBO, Italy |
Roughness Measuring | SJ-210 | 1 | MITU, Japan | |
Frequency Test System | FSA-C | 200-1200 | 1 | Xi'an Jiaotong University |
Brinell Hardness Tester | HB-300B | 1 | Time Group Inc. | |
Non-destructive Inspection Machine | CJW-2000I | 0-1500 | 1 | Sanshengda, Jiangsu |
Spectrum Analyzer | WX-5 | 1 | Jinfei, Tianjin |
|
|
Coordinate Measuring Machine Main features: high applicability, high precision and high efficiency. Main application: measuring blade profile and other. | 50x Projector Main features: high precision. Main application: measuring blade root line. |
|
|
Tool Measuring Instrument Main features: high applicability and high precision. Main application: measuring tools, improving machining efficiency and precision. | Roughness Measuring Instrument Main features: simple and easy to use, high precision. Main application: measuring blade roughness. |
|
|
Magnetic Particle Inspection Machine Main features: high applicability and high efficiency. Main application: blade non-destructive inspection (MT). | Brinell Hardness Tester Main features: simple and easy to use, high precision. Main application: blade hardness test. |
OuServing you and satisfying you are our unswerving work goals. Trust us, believe in your choice, we will do better for you.r company continuously innovates the product technology, improves the production process, strictly controls the quality, and continues to provide users with the most high-end products in the field of Super Alloy Turbine Blade for Gas Turbine/ Steam Turbine Turbohcarger. Our company adheres to the concept of 'reliable quality, credibility first', gradually become the leader of the same industry with extraordinary speed of development after years of development. It is our strong belief that quality lifts up enterprise and defines lifespan. Only with excellent and stable quality can we guarantee long-term relationships with customers and further achieve mutual benefit and win-win results.
